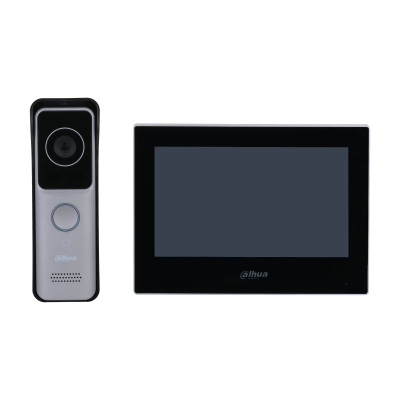

DHI-KTW02 Wi-Fi Villa Door Station& IP Indoor Monitor
Wi-Fi Villa Door Station& IP Indoor Monitor
Wi-Fi Villa Door Station
> Ultra slim design
> PC and ABS material make it ideal for indoor and outdoor use
> 1/2.8" 2-MP HD CMOS camera
> Offers two–way video call with indoor monitors
> Video and voice messages from visitors can be checked on the indoor monitor
> Video call and unlocking through app
> IR illumination and auto WDR
> Wi-Fi connection
> IP65 rated
> H.264 and H.265
> Unlock with IC card
> PoE power supply
IP Indoor Monitor
> 7" TFT capacitive touchscreen, 1024 × 600
> 6-channel alarm input and 1-channel alarm output
> Wi-Fi connection
> Standard PoE
> Outdoor station and IPC monitor
> H.265 and H.264 video decoding
> High performance & cost-effective
DHI-VTO2311R-WP | |
System | |
Main Processor | Embedded Processor |
Button Type | Mechanical |
Interoperability | ONVIF; CGI |
Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic | |
Camera | 1/2.8" CMOS 2-MP HD camera |
Field of View | H: 110°; V: 62°; D: 133° |
WDR | 120 dB |
Noise Reduction | 3D NR; 2D NR |
Video Compression | H.264; H.265 |
Video Resolution | Main stream: 720p, WVGA, D1, and CIF |
Video Frame Rate | PAL: 25 fps |
Video Bit Rate | 768 kbps–8 Mbps |
Light Compensation | Auto IR |
Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction;Echo suppression; Digital noise reduction |
Audio Bit Rate | 16 kHz, 16 bit |
Function | |
Communication Mode | Full digital |
Unlock Mode | Card; app; indoor monitor |
Card Type | IC card |
Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
Web Configuration | Yes |
Wi-Fi | Yes |
Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
Wireless Frequency Range | 2.4 GHz |
Storage | Micro SD card (max. 256 GB) |
Performance | |
Card Reading Distance | 0 cm–3 cm (0"–1.18") |
Issue Card Locally | Yes |
Casing | PC + ABS |
Capacity | |
Card Capacity | 3000 |
Port | |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1 |
Network Port | 1 × RJ-45 10/100 Mbps Ethernet port |
Alarm | |
SOS | Yes |
General | |
Appearance color | Light grey |
Power Supply | 12–33 VDC, 1 A ;Standard PoE |
Power Adapter | Optional |
Installation | Surface Mount |
Certifications | CE; FCC |
Accessory | Included: Alarm power ribbon cable, rain cover |
Product Dimensions | 160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18") |
Protection | IP65 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | 10%–90% (RH), non-condensing |
Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
Power Consumption | ≤ 3.5 W (standby), ≤ 6 W (working) |
Gross Weight | 0.4 kg (0.88 lb) |
Net Weight | 0.18 kg (0.40 lb) |
DHI-VTH2621G-WP | |
System | |
Main Processor | Embedded processor |
Network Protocol | RTSP; RTP; SIP; DNS; SSH |
Basic | |
Screen Type | Capacitive touchscreen |
Display | 7" TFT |
Screen Resolution | 1024 × 600 |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way Audio |
Audio Enhancement | Echo suppression |
Audio Bit Rate | 16 kHz; 16 bit |
Function | |
Communication Mode | Full digital |
Information Release | Receive and view text information released by the management center |
DND Mode | Do not disturb period can be set; Do not disturb mode |
Number of Extensions | Villa: 9 |
Wi-Fi | Yes |
Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
Wireless Frequency Range | 2.4 GHz |
Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
Performance | |
Casing | PC + ABS |
Port | |
Alarm Input | 6 |
Alarm Output | 1 |
Power Output | 1 (12 V/200 mA) |
Door Bell | Yes (use any alarm input port) |
Network | 1 × RJ-45 10/100 Mbps Ethernet port |
Alarm | |
SOS | Yes |
General | |
Color | Black |
Power Supply | 12 VDC 1A |
Installation | Surface Mount |
Certifications | CE; FCC |
Accessory | Bracket and alarm ribbon cable (included) |
Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity | 10%–95% RH (non-condensing) |
Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
Power Consumption | ≤2 W (standby); ≤6 W (working) |
Net Weight | 0.34 kg (0.74 lb) |
Gross Weight | 0.58 kg (1.27 lb) |
