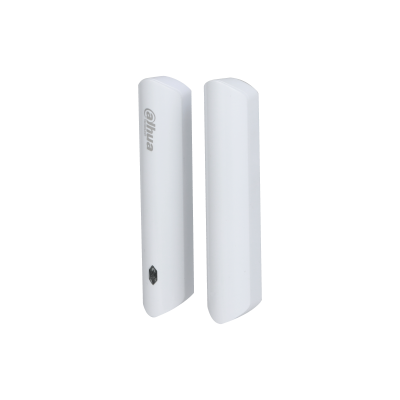

Wireless door detector
> Signal strength detection.
> Low battery alarm.
> Temperature measurement.
> Frequency hopping function and two-way communication technology ensure communication stability.
> Cloud update and automatic recovery from update failure.
Port | |
Indicator Light | 1 × green alarm indicator |
Button | 1 × power button |
Function | |
Tamper Alarm | Yes |
Remote Upgrade | Cloud update |
Low Battery Alarm | Yes |
Test Mode | Yes |
Search | Signal strength detection |
Wireless | |
Carrier Frequency | 868.0 MHz–868.6 MHz |
Communication Distance | Up to 1,200 m (3,937.01 ft) in an open space |
Communication Mechanism | Two-way |
Frequency Hopping | Yes |
Encryption Mode | AES128 |
General | |
Power Supply | CR123A battery |
Power Consumption | Max. 125 mW |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
Operating Humidity | 10%–90% (RH) |
Product Dimensions | 100.2mm × 20.8mm × 20.3mm (3.94”× 0.82” ×0.80”) (L × W × H) |
Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H) |
Installation | Bracket mount |
Net Weight | 70 g (0.15 lb) |
Gross Weight | 115 g (0.25 lb) |
Certifications | CE |
Battery Life | 4 years (The external input type is NO) 2 years (The external input type is NC or Pulse) |
Casing Material | PC + ABS |
Temperature | |
Measuring Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
Measuring Precision | ±1 °C (±1.8 °F) |
Resolution | 1 °C (33.8 °F) |
Specification | |
Sensor | Reed Switch |
Scenario | Non-metal doors |
Movement Distance | < 40 mm (1.57") |
Peripherals | |
External Zone | 1-channel dry contact input |
